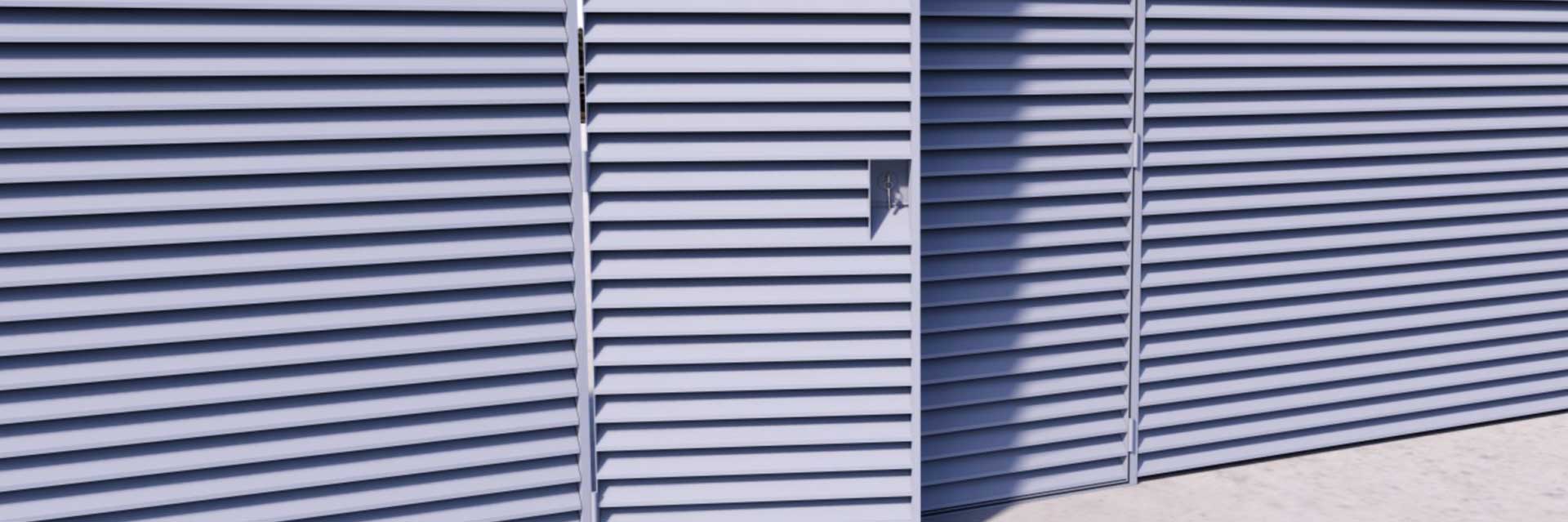

Aluminium Louvred Doors

Fully louvred extruded aluminium doors available in our BL050, BL075, BL090 and BL50D louvre systems Please see individual product brochures for louvre performance specification

Doors are provided fully framed for installation into customer formed and prepared structural openings. They can also be incorporated into our louvre screens

All doors are made to measure to suit customer dimensions. They are pre-hung in our factory before despatch to ensure alignment and correct operation.

Typical lead time: 2-3 weeks depending upon quantity, specification and finish.

Aluminium extrusions type 6063-T6 to BS1474

Standard Hardware - Guard (mesh) Options:

• Bird Guard – Galvanised steel with 12.7mm x 12.7mm apertures
• Vermin Guard– Galvanised steel with 6.35mm x 6.35mm apertures
• Insect Mesh– PVC coated fibre glass or stainless steel or HDPE options

Options

• Emergency escape hardware (with or without external access device)
• Sash lock
• Blanking Panels, single skin or insulated
• Flush bolts
• Chain bolts (recommended on double doors over 2200mm high)
• Door stays (recommended on all doors unless closer fitted)
• Door closers
• Customers hardware/ironmongery
• Removable transom and overpanels. Finishes
• Unfinished aluminium (mill finish)
• Architectural grade Polyester Powder coatings to any standard RAL or BS 4800 range colours
• Anodised

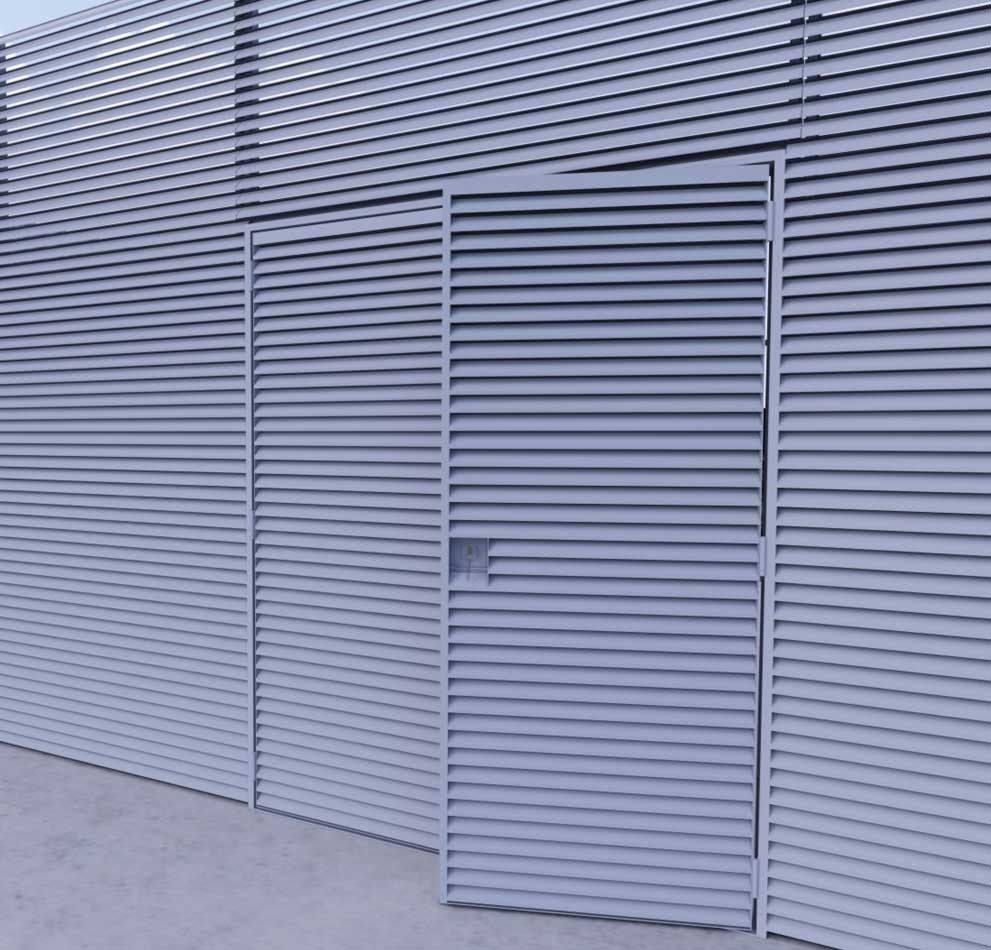

BD050-DRHO

Double, Right Hand Active, Outward Opening

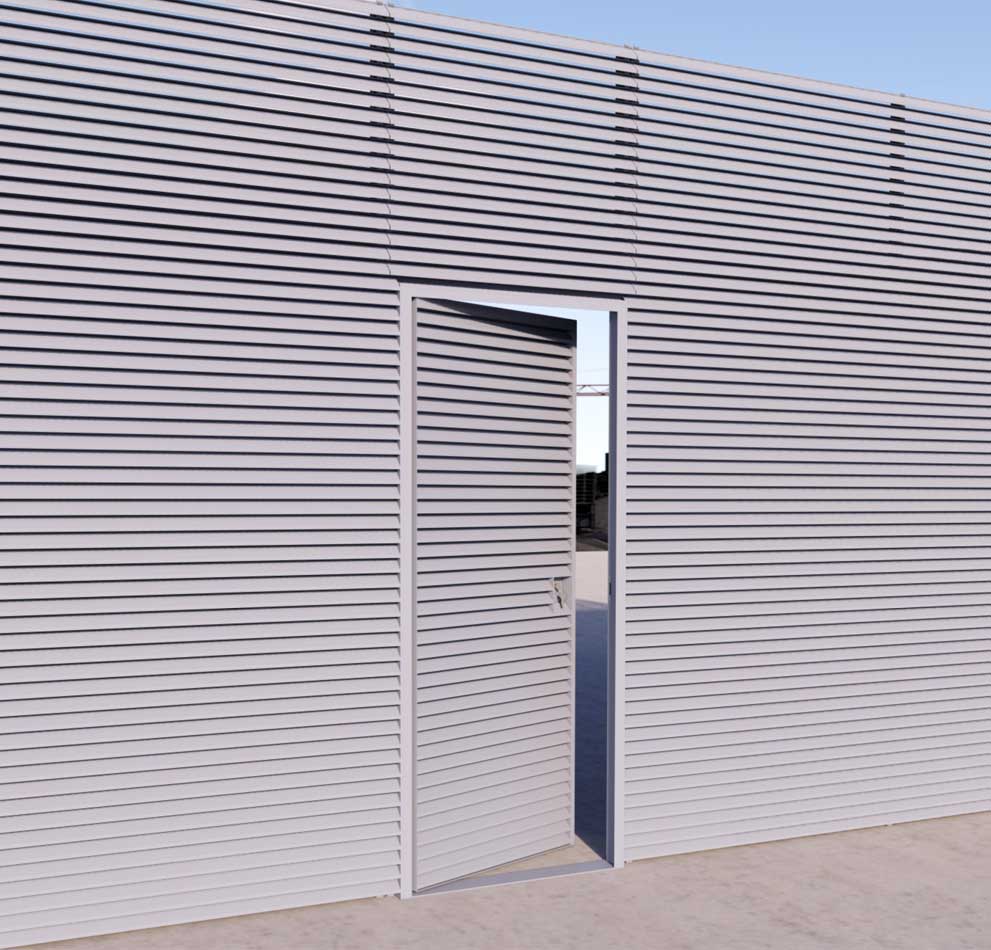

BD050- SLHI

Single, Left Hand Hinged, Inward Opening

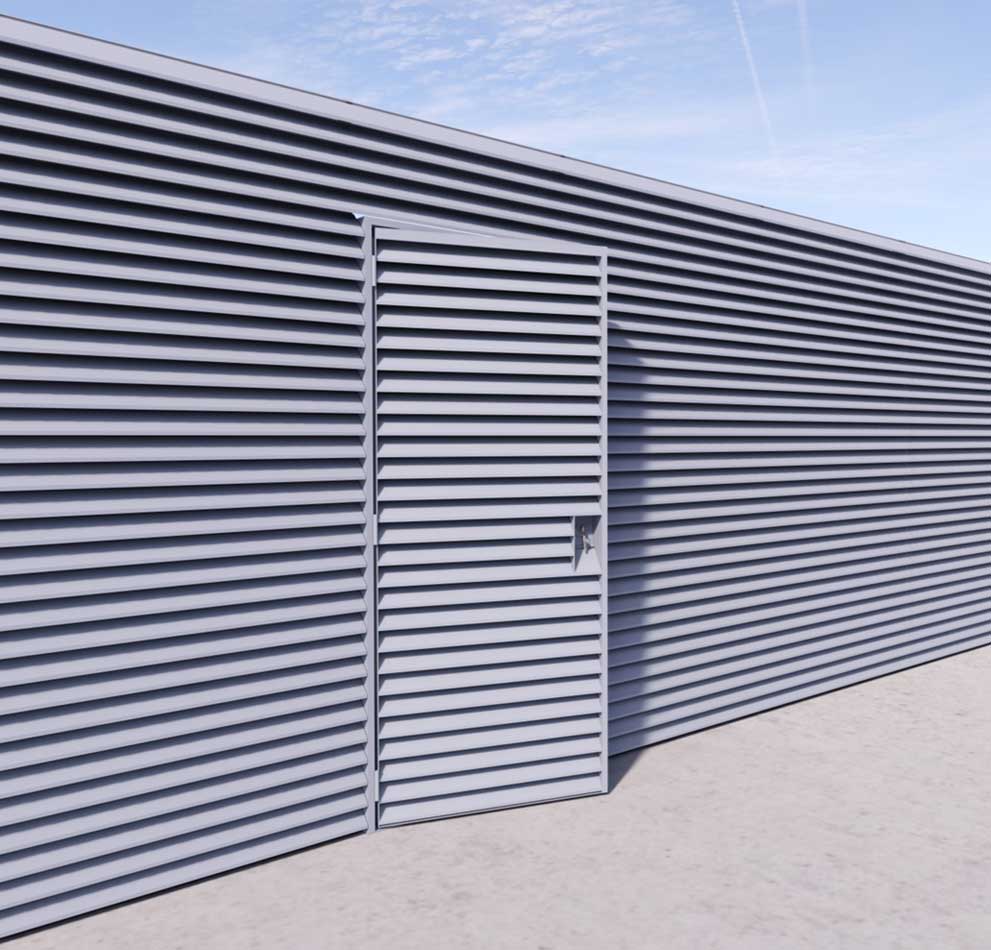

BD075-SLHO

Single, Left Hand Hinged, Outward Opening

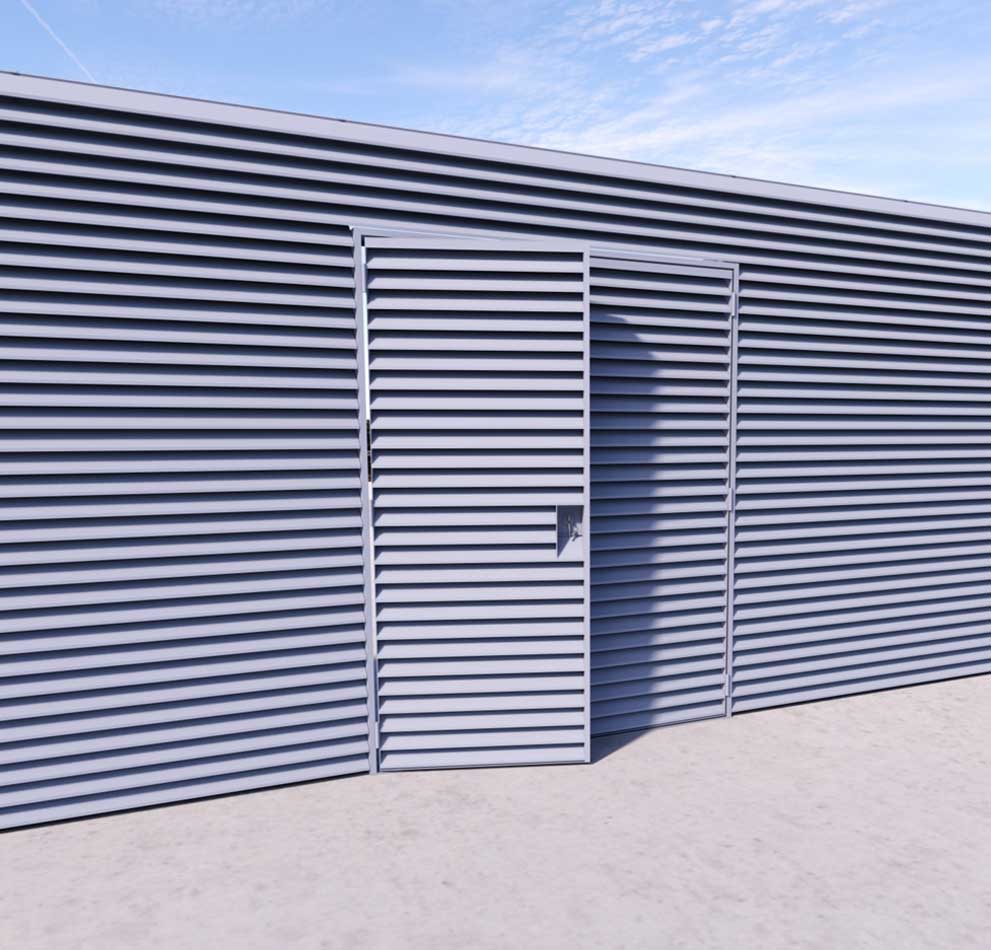

BD075-DLHO

Double, Left Hand Active, Outward Opening

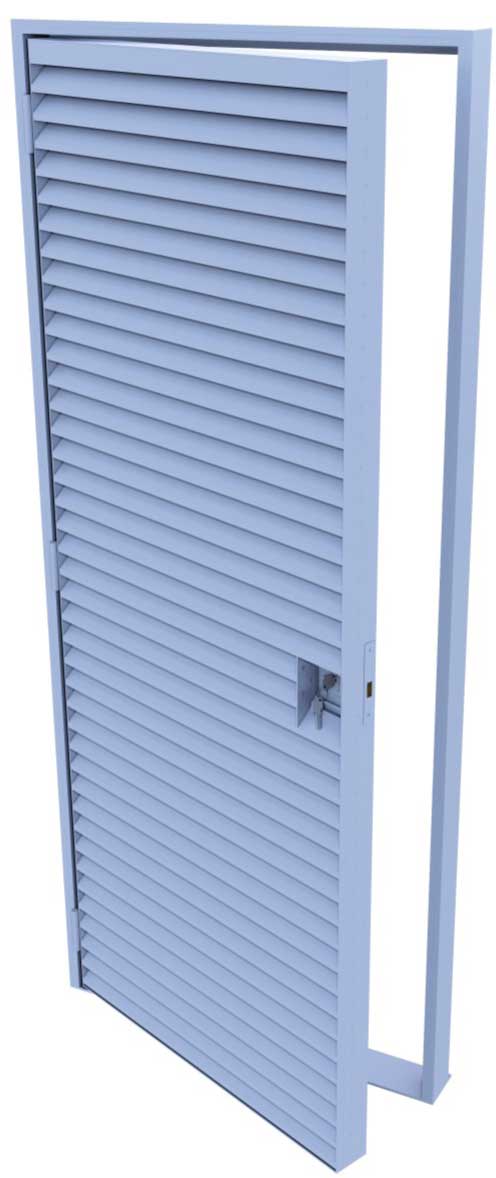

SLHO

Single, Left Hand Hinged, Outward Opening

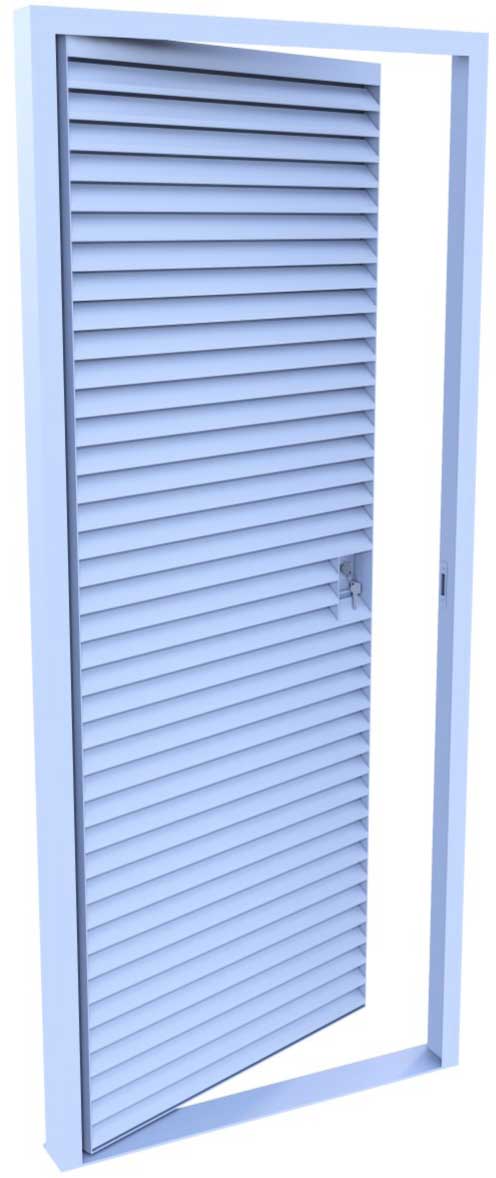

SLHI

Single, Left Hand Hinged, Inward Opening

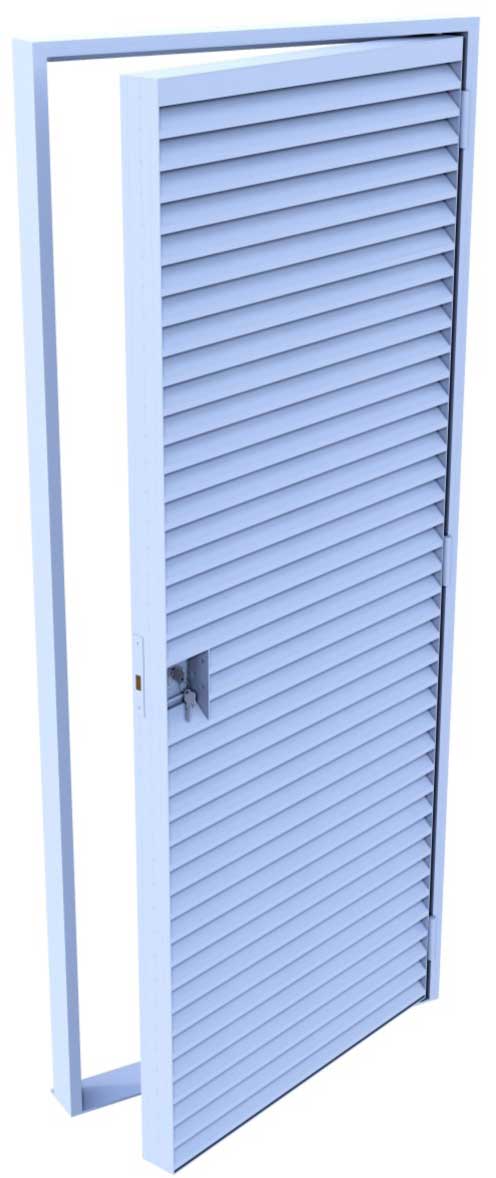

SRHO

Single, Right Hand Hinged, Outward Opening

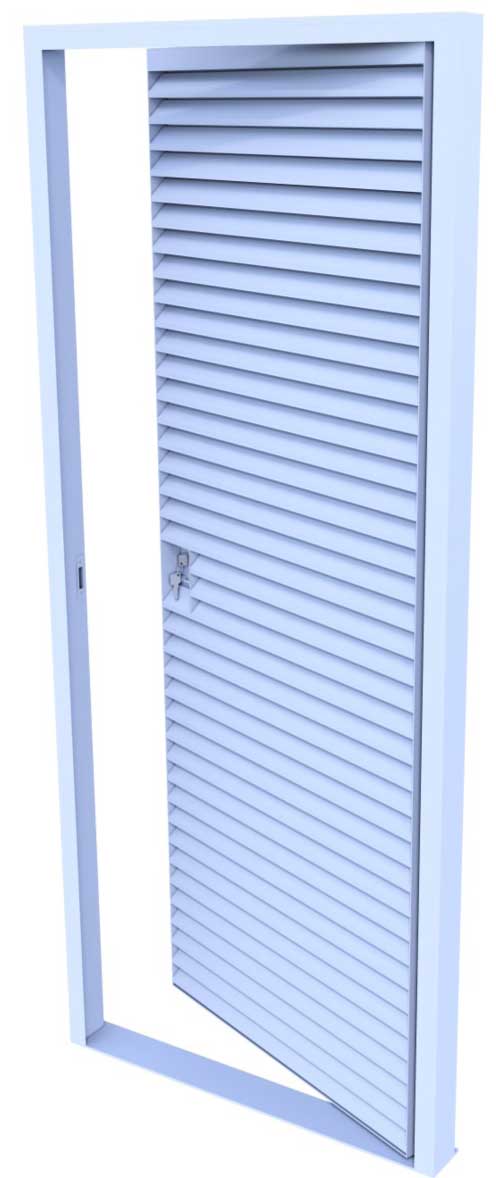

SRHI

Single, Right Hand Hinged, Inward Opening

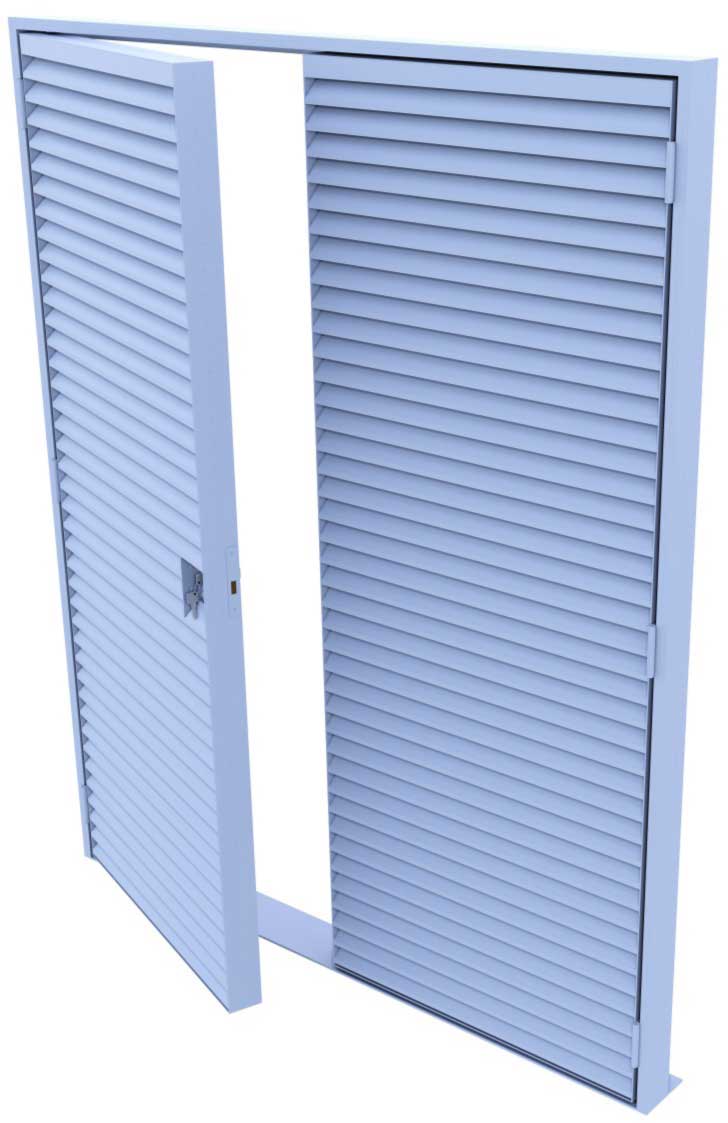

DLHO

Double, Left Hand Active, Outward Opening

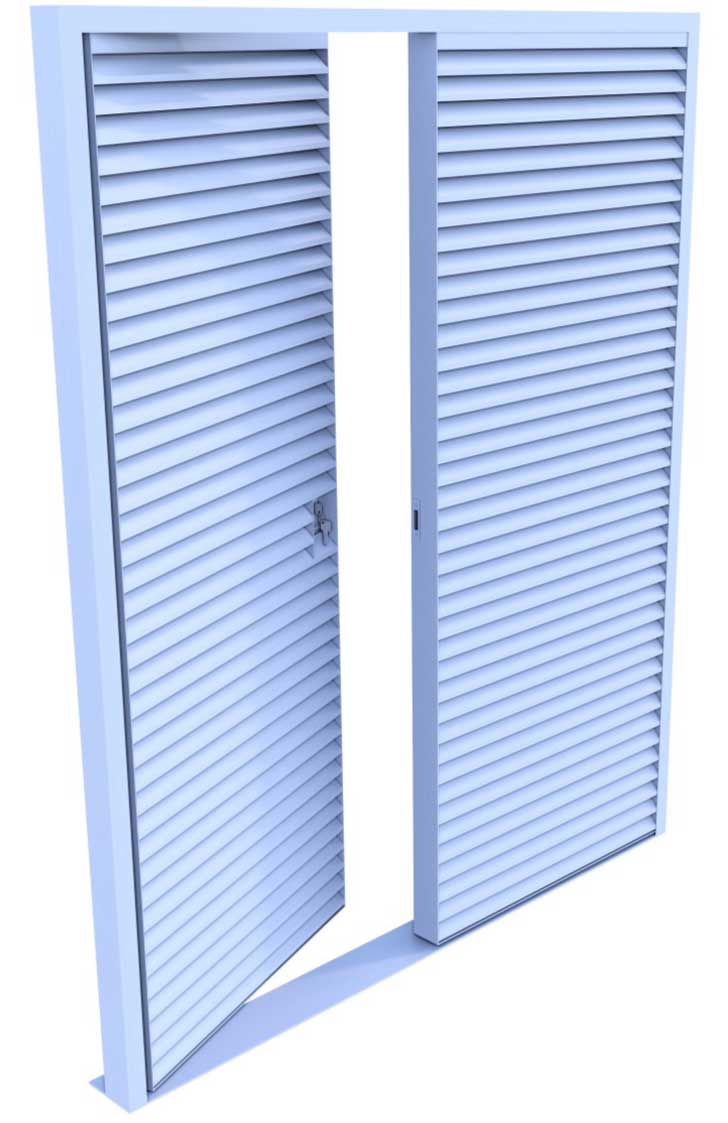

DLHI

Double, Left Hand Active, Inward Opening

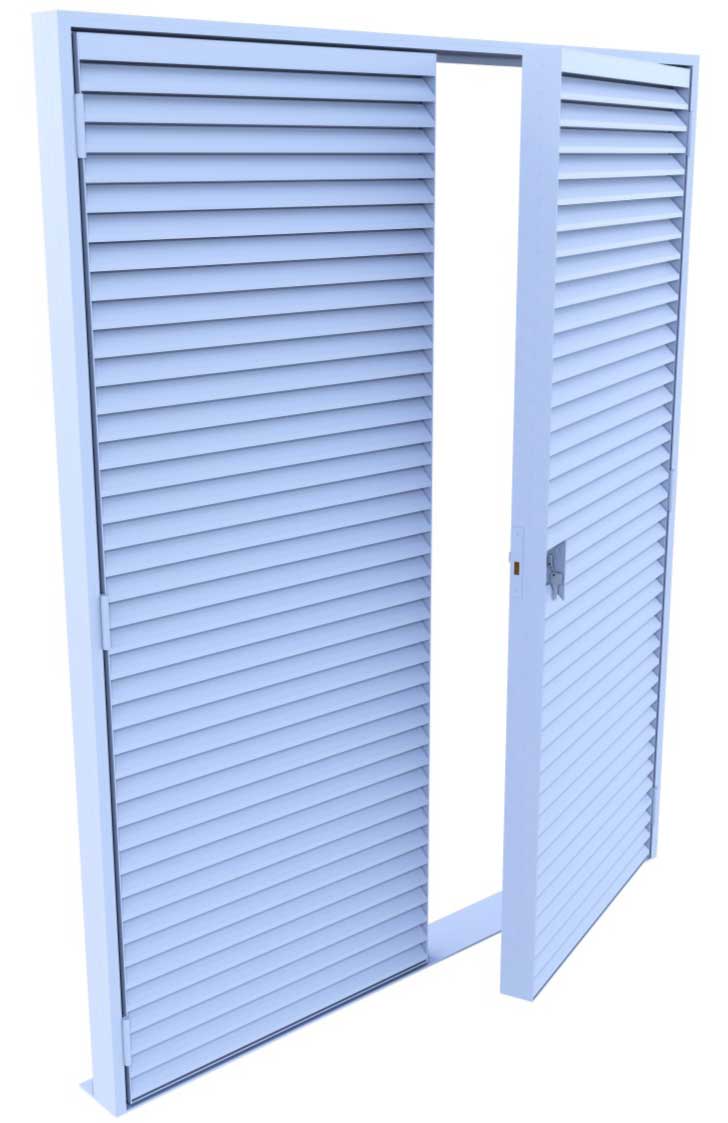

DRHO

Double, Right Hand Active, Outward Opening

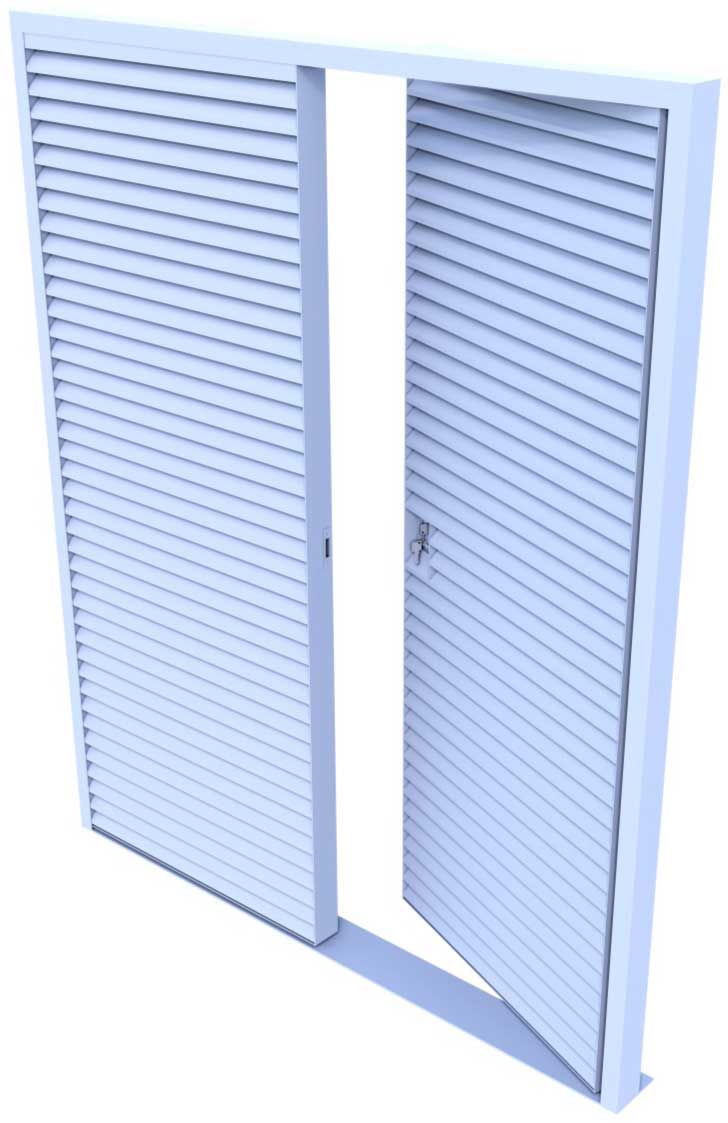

DRHI

Double, Right Hand Active, Inward Opening
